Sterile Isolation Equipment

Sterile Isolation Equipment

VHPS-100 Vaporized Hydrogen Peroxide Sterilizer is a highly efficient, non-toxic and harmless biological decontamination equipment, which has been widely used in the pharmaceutical industry. It is suitable for on-line sterilization (SIP) of isolators, freeze dryers, aseptic dispensing tanks, aseptic pass box and small-space clean rooms in laboratories and production lines.
VHPS Series Hydrogen Peroxide Sterilizeris an equipment that forms hydrogen peroxide steam from H202 solution (i.e.hydrogen peroxide)through vaporizer,and then transmits it to the space to be sterilized through a pipeline for biological decontamination.It is widely used for room temperature sterilization of confined spaces, including transfer tanks, filling machines, freeze-drying machines, isolators, clean rooms, and other places.
The autoclave utilizes the advantage of vaporized hydrogen peroxide—where its gaseous state at room temperature exhibits greater spore-killing efficacy than its liquid state—to release free hydroxyl radicals that attack cellular components, including lipids, proteins, and DNA, thereby achieving complete sterilization. A sterilizer is a piece of equipment that uses a hydrogen peroxide solution with a concentration of 30%–35% (i.e., hydrogen peroxide) to vaporize this solution into hydrogen peroxide vapor, which is then conveyed through pipelines into a sealed chamber for disinfection and sterilization.
The glove lntegrity tester is specially developed for isolators, glove boxes and clean‑room production lines. It performs automatic on‑site leak detection for operating gloves without detaching gloves from equipment. Featuring high‑precision pressure sensing, fast testing cycle and stable data output, it can efficiently detect pinholes, cracks and sealing failures of gloves. Real‑time test results and data records are available for compliance with GMP requirements. It effectively prevents cross‑contamination, guarantees the safety of operators and product quality, and is widely applied in pharmaceutical, biotech, microelectronics and sterile‑processing industries.

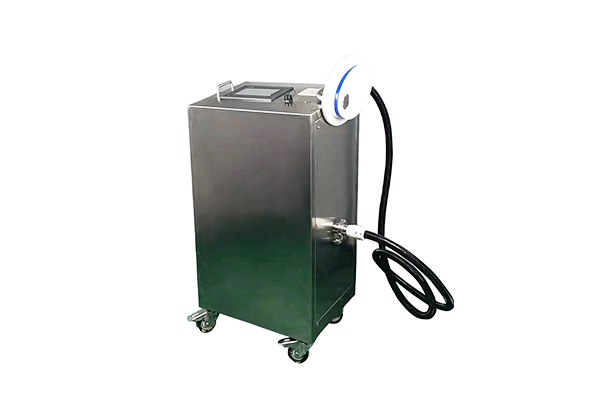

The GT-6(online) glove integrity tester is an instrument for detecting the leakage rate of sterile gloves. It is widely used in the leakage detection of rubber gloves and products such as 7 - inch. 8 - inch. 10 - inch gloves, and half - body suits. It features simple and rapid detection. high accuracy, and visualizable test results.

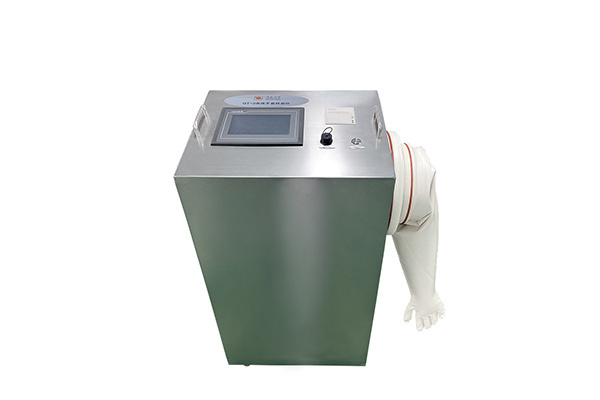

The GT-2(offline) series glove integrity tester is an instrument for detecting the leakage rate of sterile gloves. It is widely used in the leakage detection of rubber gloves and products such as 7 - inch. 8 - inch. 10 - inch gloves, and half - body suits. It features simple and rapid detection. high accuracy, and visualizable test results.
The sterile filling isolator is a core precision barrier equipment applied in the fields of pharmaceuticals, biological preparations, medical aesthetic consumables and sterile testing. In strict compliance with GMP, YY/T 0567.6 and other industrial specifications, it adopts fully enclosed physical isolation and dynamic environmental regulation technology to build an independent ISO Class 5 (Grade A) sterile microenvironment. It thoroughly eliminates cross-contamination risks caused by personnel and external cleanrooms, and fully ensures the sterility safety of key processes such as material batching, feeding, filling and partial stoppering. The equipment features a seamless and hermetic rigid cabin structure, equipped with sterile glove operation ports and RTP rapid transfer ports, enabling fully enclosed operation without material exposure or direct human contact. It fundamentally blocks the invasion of core pollution sources such as dander, droplets and dust. Built with a high-efficiency HEPA filtration system and vertical unidirectional airflow organization, it accurately controls key parameters including suspended particles, temperature, humidity and differential pressure inside the cabin, maintaining a high-level clean environment continuously with superior local sterility assurance performance compared with traditional cleanrooms.
The GT-8W handheld glove integrity tester is a high-end portable device that integrates high-precision detection,wireless communication, intelligent management, and user-friendly operation. It is designed for testing the integrity of isolation gloves on equipment such as glove boxes,isolators, and RABS.This tester is designed in accordance with the ISO 14644-7 international standard,complying with the 2020 edition of the China Pharmacopoeia and the electronic record and electronic signature compliance requirements of 21 CFR Part 11.It adopts the principle of high-sensitivity pressure drop method built-in high-precision pressure sensors and intelligent algorithms to achieve rapid,non-destructive detection of glove micro-leaks (with a minimum detectable aperture of 200um). The testing process requires no disassembly of gloves,truly enabling online in-situ detection, avoiding the risks of secondary contamination and cumbersome operations caused by disassembly and assembly, thereby significantly improving detection efficiency and safety.

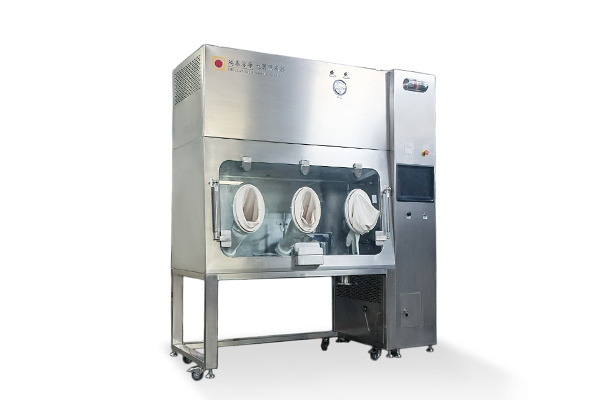

STl series sterile isolator is a controlled clean micro-environment that not only removes the external microbial contamination,isolation,and non-personnel contamination,but also maintains the cleanliness level A environment. It is equipped with a special hydrogen peroxide VHP sterilizer,a residue removal system after sterilization,a sterile air supply system,a closed cabin system,a special HMl operation and recording system,and a computerized verification system software. The sterile isolator is widely used in...
