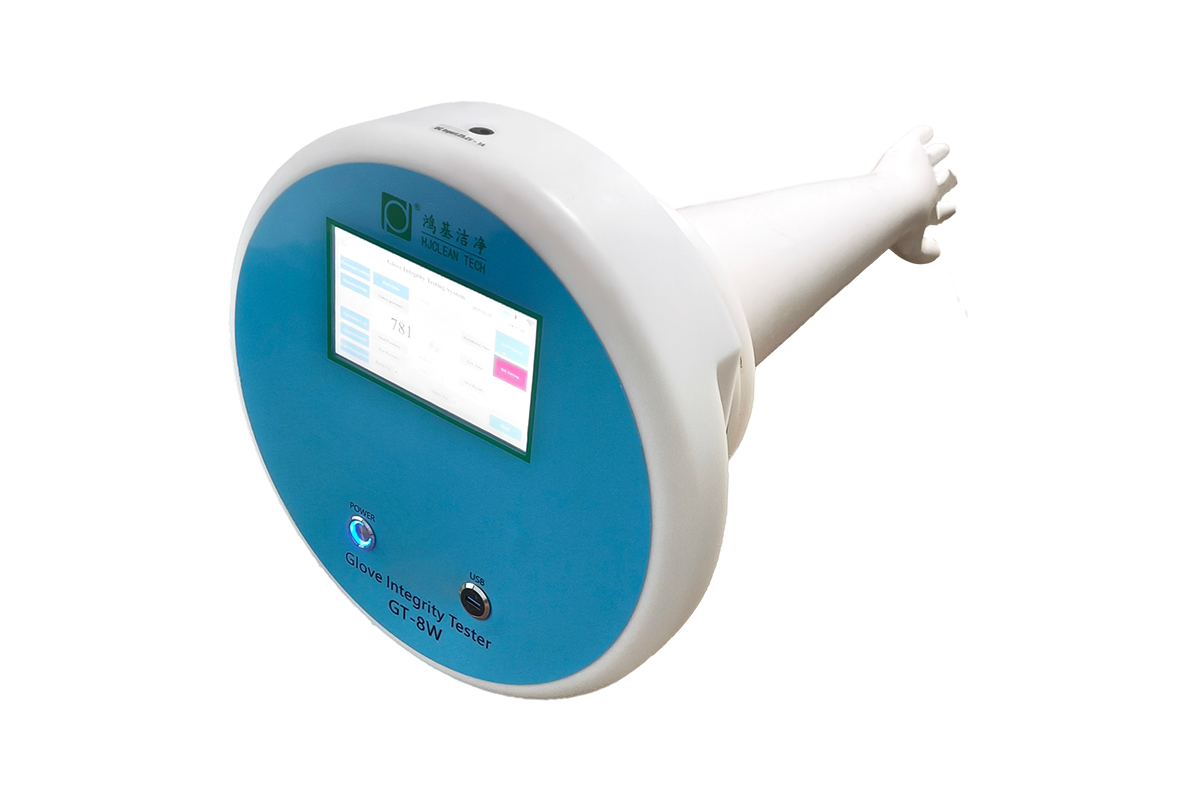

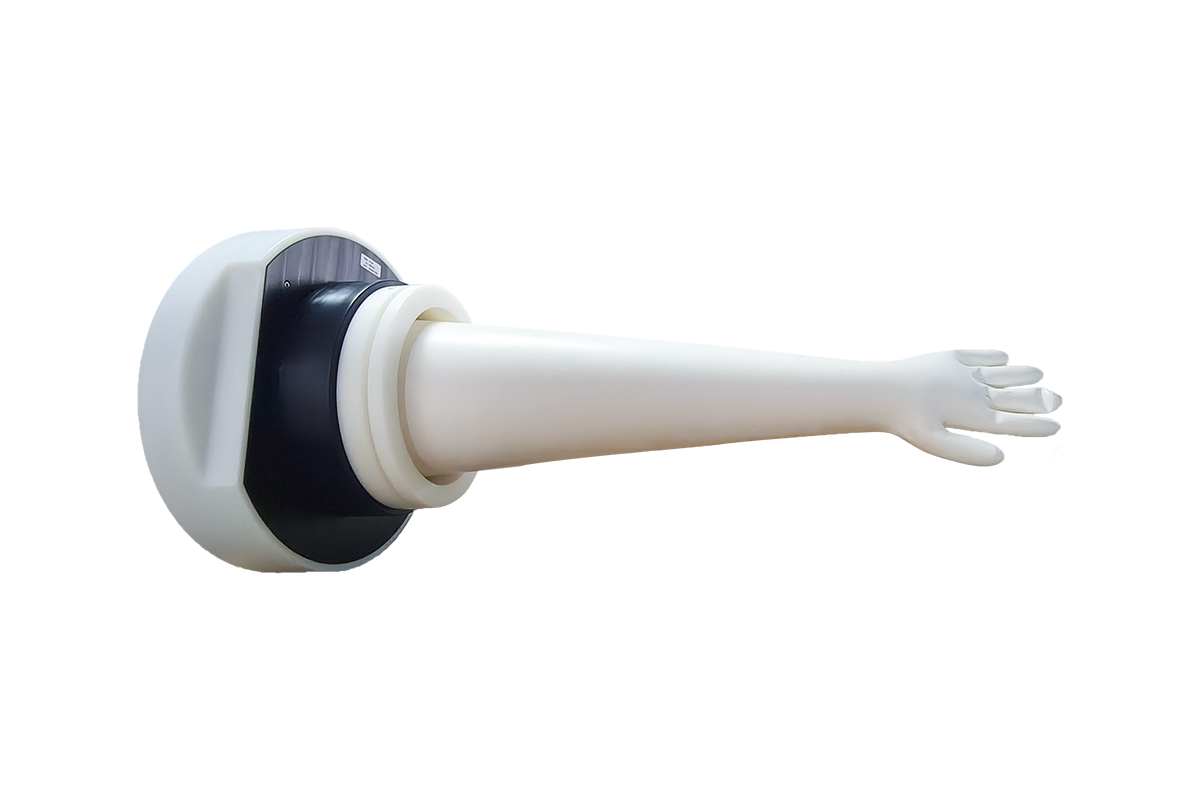

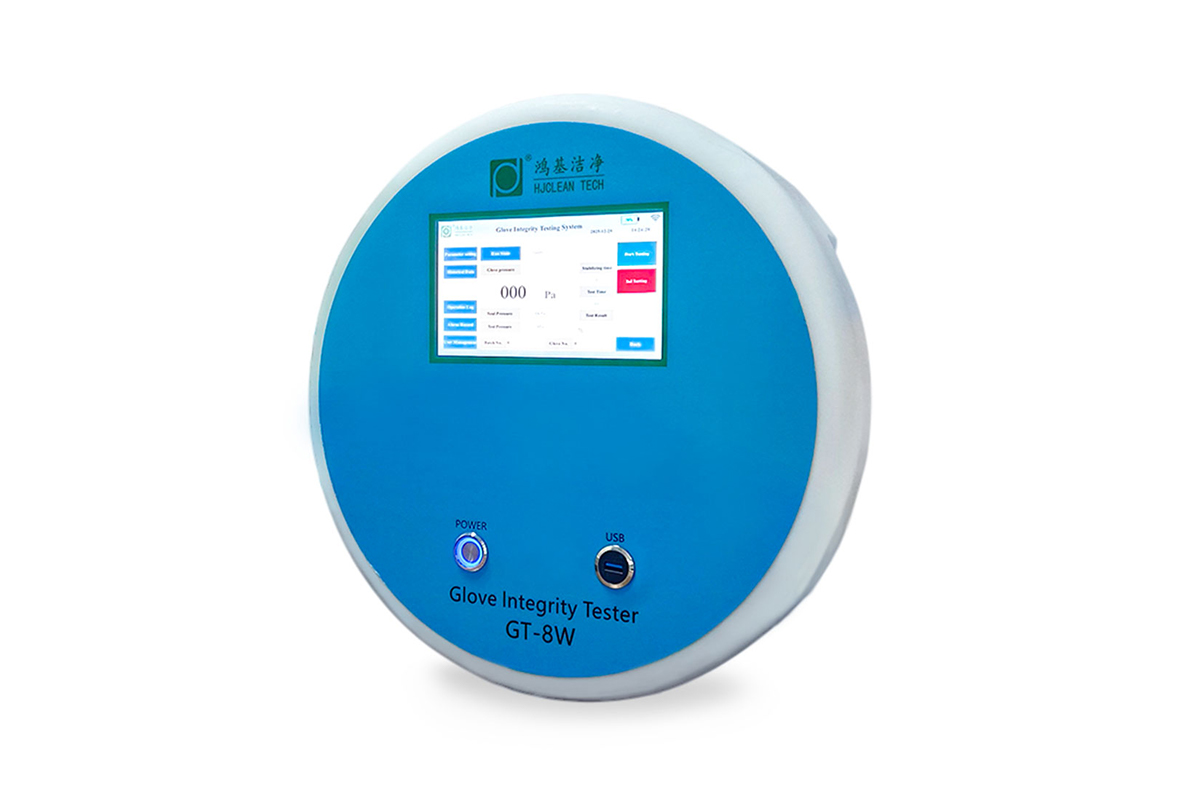

GT-8W Glove Integrity Tester
- The GT-8W handheld glove integrity tester is a high-end portable device that integrates high-precision detection,wireless communication, intelligent management, and user-friendly operation.

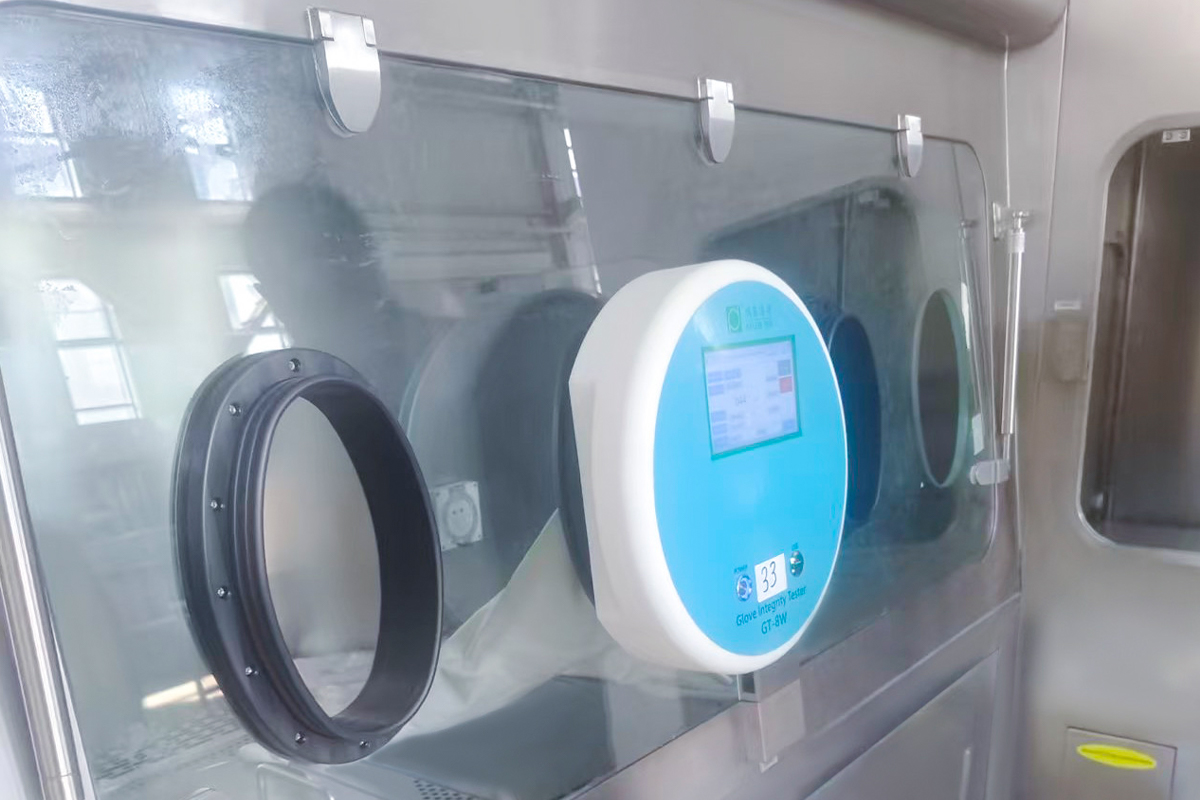

It is designed for testing the integrity of isolation gloves on equipment such as glove boxes,isolators, and RABS.This tester is designed in accordance with the ISO 14644-7 international standard,complying with the 2020 edition of the China Pharmacopoeia and the electronic record and electronic signature compliance requirements of 21 CFR Part 11.It adopts the principle of high-sensitivity pressure drop method built-in high-precision pressure sensors and intelligent algorithms to achieve rapid,non-destructive detection of glove micro-leaks (with a minimum detectable aperture of 200um).
The testing process requires no disassembly of gloves,truly enabling online in-situ detection, avoiding the risks of secondary contamination and cumbersome operations caused by disassembly and assembly, thereby significantly improving detection efficiency and safety.
Product Description
Main Features
- Online in-situ detection, no need for disassembly, avoiding cross-contamination and damage from disassembly.
- High-precision pressure drop method, high sensitivity, good reproducibility.
- Wireless and portable design, with built-in power supply and air source, allowing for flexible mobility.
- Complies with multiple standards such as ISO,GMP, and 21 CFR Part 11.
- Intelligent data management, supporting audit tracking and electronic recording.
- Friendly human-computer interaction, easy operation, and low maintenance cost.

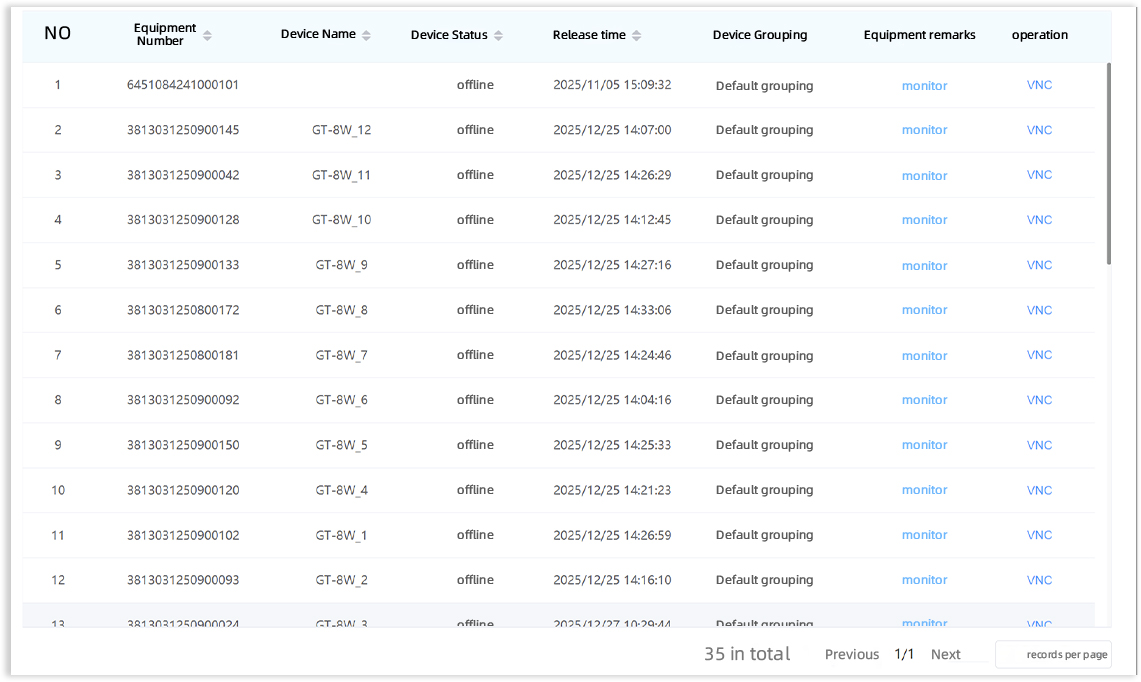

- Multi-device networking management, supporting centralized management of multiple devices.
- Power management with large capacity and low power consumption,capable of continuous operation for over 10 hours on a single charge.
Performance Parameters:
| Parameter item | Technical indicators |
| Detection Principle | Pressure drop method |
| Inflation pressure range | 0~2000 Pa |
| Display resolution | 0.1 Pa |
| Test time | ≤1min |
| Detection accuracy(minimum aperture) | ≤200μm |
| Test mode | Positive pressure holding mode |
| Test medium | clean air |
| Storage capacity | 64G |
| Power supply | DC24V,8Ah |
| Overall dimensions | φ380*150mm |
| Weight | 4.5kg |
| Charging time | About 8 hours (0%—100%) |
