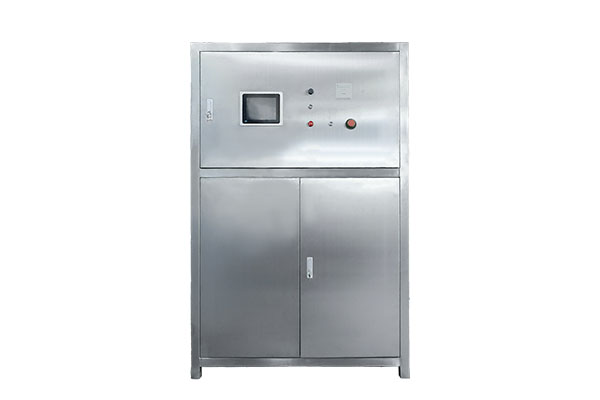

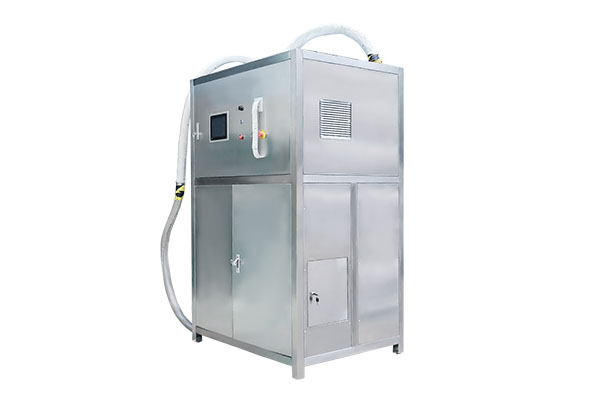

VHPS-200 Vaporized Hydrogen Peroxide Sterilizer
- VHPS Series Hydrogen Peroxide Sterilizeris an equipment that forms hydrogen peroxide steam from H202 solution (i.e.hydrogen peroxide)through vaporizer,and then transmits it to the space to be sterilized through a pipeline for biological decontamination.It is widely used for room temperature sterilization of confined spaces, including transfer tanks, filling machines, freeze-drying machines, isolators, clean rooms, and other places.
Product Description
PRODUCT INTRODUCTION:
VHPS-200 Vaporized Hydrogen Peroxide Sterilizer is an equipment that forms hydrogen peroxide steam from H202 solution (i.e.hydrogen peroxide)through vaporizer,and then transmits it to the space to be sterilized through a pipeline for biological decontamination.It is widely used for room temperature sterilization of confined spaces, including transfer tanks, filling machines, freeze-drying machines, isolators, clean rooms, and other places.
USE ENVIRONMENT:
Ambient temperature:10℃-40℃
Relative humidity:0—85%RH
Voltage:AC220V+10%;Frequency:50Hz±1Hz;Effective grounding
Dust -free and smoke -free environment
Ambient dust concentration not exceeding 100,000 particles/ft³
PERFORMANCE PARAMETERS:
| Rated vaporization capacity | 0~30g/min |
| Air volume | 700m³/h |
| Sterilization factor | Hydrogen peroxide vapor |
| Biological decontamination ability | 6Lg |
| Power supply | AC220V,50Hz |
| Flash evaporation power | 18kW |
| Weight(kg) | 300 |
| Overall dimensions w*d*h(mm) | 1200*900*1950 |
