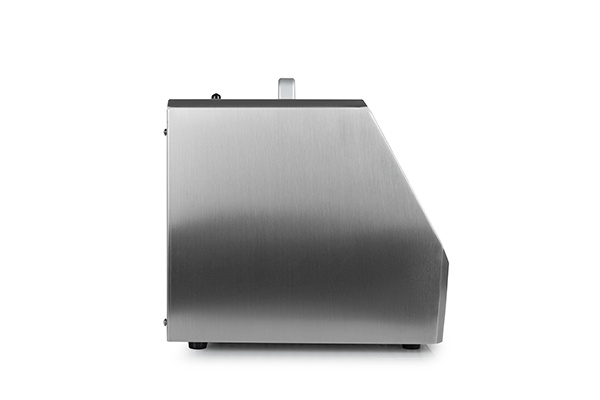

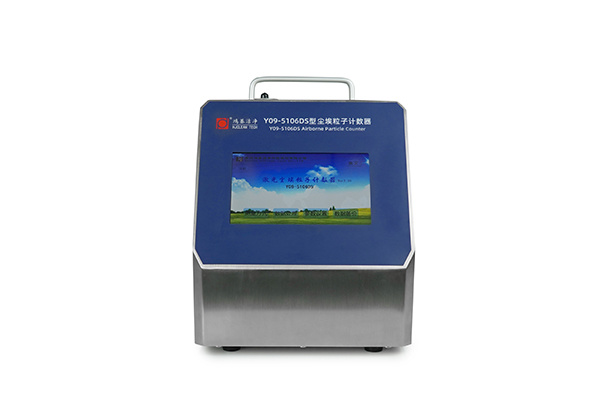

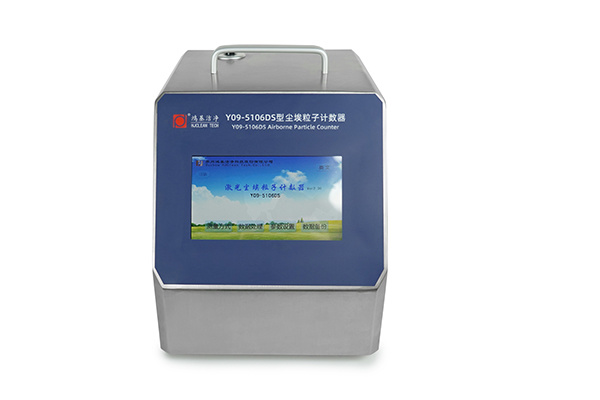

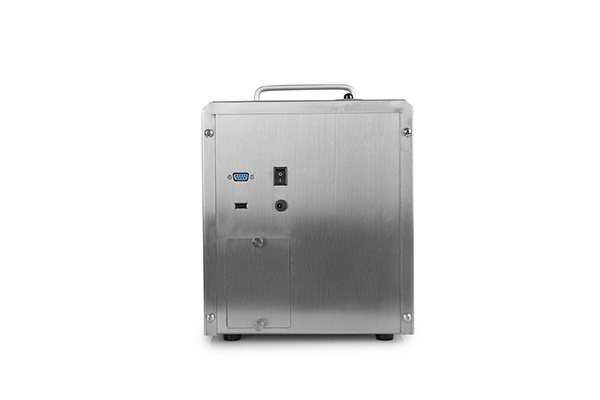

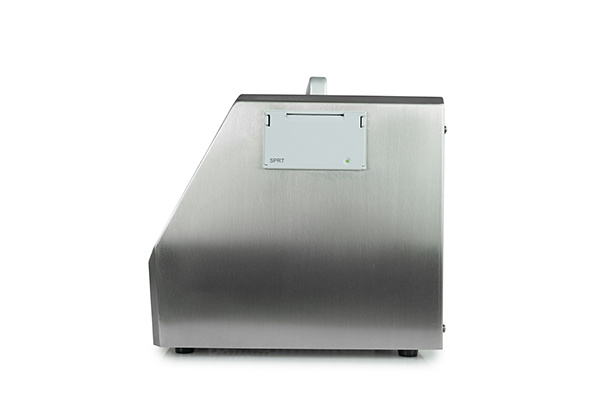

Y09-5106DS airborne particle counter
- Y09-5106DS airborne particle counter (hereinafter referred to as the instrument) is an instrument used to measure the size and number of large dust particles suspended in the air per unit volume. The instrument adopts semiconductor laser light source, high detection accuracy, simple and clear function operation, can store and print the test results, and the test environment is very convenient. It is widely used in the concentration of large particles suspended in the environment of electronics, optics,
Product Description
Technical Features
Touch screen control system
M3/ft3 unit selection
13,000 sampling data storage
ISO/GMP/209E standard optional
Three-level password management authority
USB export and real-time printing
Count report in accordance with GMP/ISO14644/209EISO21501-4
Performance Parameters
| sampling flow | 100L/min |
| Particle size channel | 0.5, 1.0, 2.0, 3.0, 5.0, 10 um |
| Dimensions | 310*240*280mm3(w*d*h) |
| Weight | 8.5kg |
| Sampling period | 1s~99 min 99s (adjustable) |
| Sampling frequency | 1~99h 99m 99s |
| Power supply | 14.8V lithium battery |
| Display | 800*480 resolution, 65k colors, touch screen control system |
| Rated power | 30W |
| Self-cleaning time | ≤10min |
| Light source life | Long life laser diode with 50000 hours MTTF |
| Print mode | Dot matrix printing |
| Counting alarm | 0.5,1.0,5.0 Alarm data can be set arbitrarily for each channel |
| Data storage | 10000 +3000 groups UCL |
| Continuous working hours | 6H |
| Maximum sampling concentration | 35000/L |
| Working environment | Temperature: 10~ 35 °C; Humidity: 20%~ 75% |
| Optional accessories | SS Auxiliary Vehicle |
| Processing method | Single, Repeated, Continuous, Calculated, GBmodel(UCL) |
FAQ
Q1: What is the minimum order quantity for the laser airborne particle counter?
A: Minimum order is one unit.
Q2: What is the delivery lead time for the laser airborne particle counter?
A: 15‑30 working days. In case of supply fluctuations of core components, the delivery time will be confirmed and communicated with customers in writing in advance.
Q3: Do you support OEM customization and customer‑logo marking?
A: OEM / ODM customization is available. We can adjust instrument nameplates, operation interfaces, output protocols and software functions per customer requirements. Customer LOGO and brand nameplates can be printed. Certain customizations may incur costs for program modification and nameplate mould opening. Please provide detailed technical specifications. Our technical department will evaluate and issue solutions and quotations subject to mutually confirmed documents.
Q4: What industry standards does it comply with and what certifications are available?
A: It complies with ISO14644 cleanroom standards and GMP specifications, meeting validation requirements for pharmaceutical, electronics and biological laboratory applications. Our company holds ISO9001 quality management system certification and CE certification, and is a member unit of China Cleanroom Standards Committee. Factory test reports are supplied upon delivery. Third‑party metrological calibration can be arranged upon customer request. Please contact sales for relevant product certification documents.
Q5: What is the after‑sales warranty period?
A: The standard warranty for the complete detecting instrument is 1‑year. Free spare‑part replacement and remote technical support are provided for non‑human‑induced failures within the warranty period. Service sites are available across China, and instrument operation training can be provided. Lifetime technical support, paid repair and metrological maintenance are offered after warranty expiration. Extended‑warranty packages are optional.
