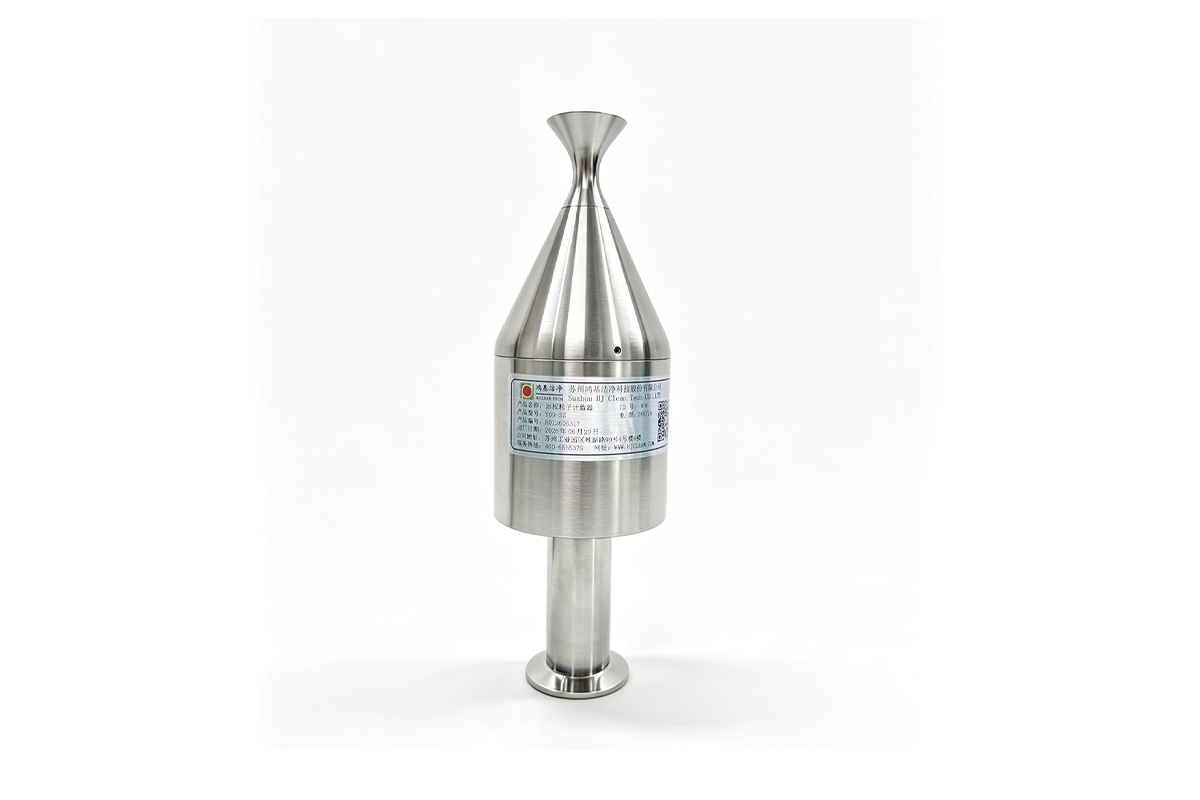

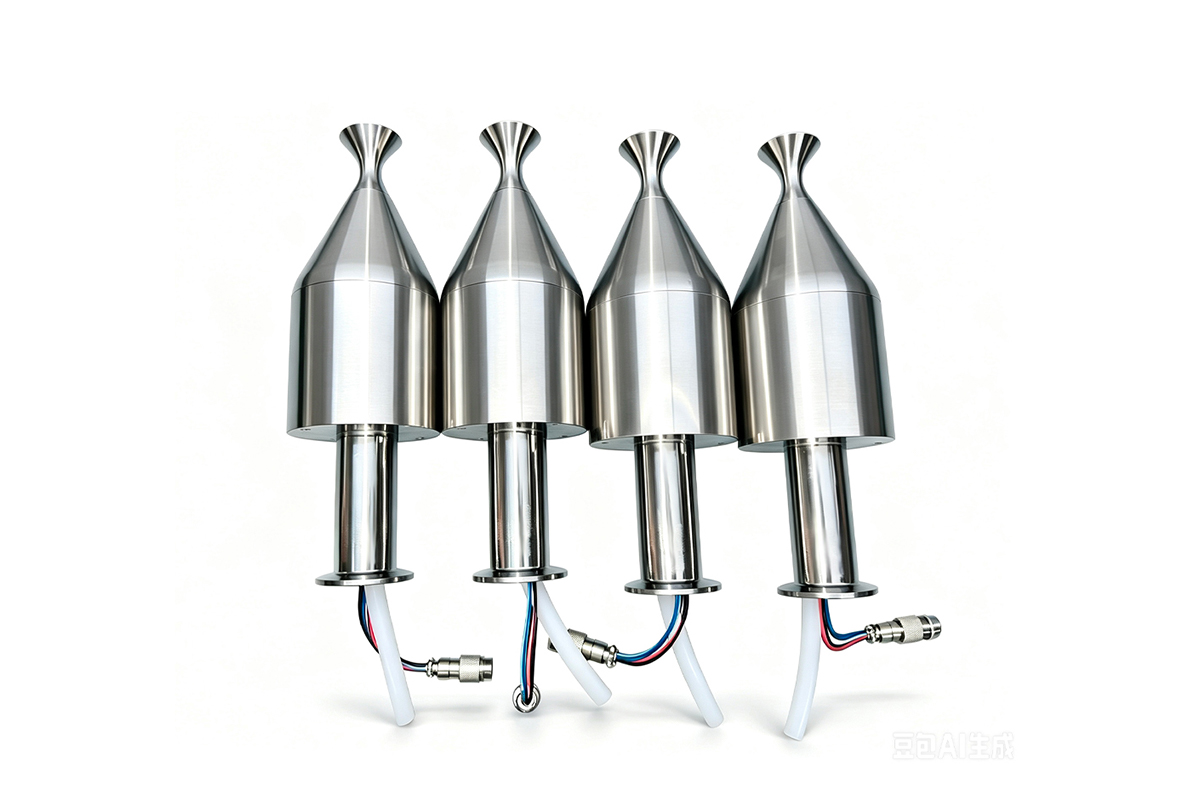

Y09-SS remote particle counter
- The Y09-SS remote particle counter is a system designed to measure the size and quantity of airborne particles per unit volume of air within clean‑room environments.
Equipped with a new‑generation international‑standard sensor for airborne‑particle concentration detection, this on‑line particle counter is a high‑tech product integrating optics, laser technology, electronics, computer technology, precision machinery, aerodynamics and other disciplines. It delivers outstanding features including high‑measurement accuracy, well‑optimized detection performance, reliable operation, rich functions, distinctive appearance, compact footprint and light weight, alongside simple installation.
It is primarily applied to on‑line cleanliness monitoring for clean‑room environments, assessment of variation trends for airborne dust particles, as well as real‑time monitoring, early warning and alarm for ambient air quality and fugitive dust.
Product Description
Product Advantages
1. A powerful software system that is compatible with sensors from all over the world, such as lighthouse, METONE, PMS.. free upgrade.
2.The software system has an open data interface and can be easily connected to users' MES/SCADA and other systems
3. The software fully complies with the functions of 21CFR and part11 regulations.
4.Powerful user management function, with over 1000 user management permission settings.
5.With real-time curve, data and historical curve data functions available for selection.
6.Remote monitoring 7/24 real-time monitoring data report.
7.Remote calibration, fast and flexible, without the need for disassembly and return to the factory.
8. HJCLEAN Software System Lifetime Free Upgrade.
Performance Parameters
| Model/Parameters | Y09-SS |
| Particle size | 0.5,5.0 m |
| Sampling flow | 1CFM (28.3L/min) |
| Overall diemension(L*W*H)mm | φ80*260 |
| Weight | 2.2kg |
| Power consumption | 8W |
| Power supply | DC12V+10% |
| Sampling pumps | Built-in pump, (brand: Thomas) |
| Detection unit | Pcs/ft³ |
| Concentration error | 30% |
| Repeatablity | ≤10% |
| Measurement accuracy | ±10% |
| Self-cleaning time | ≤10min |
| Output mode | RS485 |
| Light source and life | Semiconductor laser,life greater than 30000h |
| Environment | Temperature: 10-30°C, humidity: 20-75%; Atmospheric pressure: 86kPa-106kPa |
FAQ
Q1: What is the MOQ for the online monitoring particle counter system?
A: MOQ starts from one monitoring point. Configurations can be made according to the actual point‑quantity requirements of your project. Please contact our sales team for confirmation.
Q2: What is the lead time for the online monitoring particle counter system?
A: The production lead time ranges from 25 to 45 working days, depending on customization complexity including functions, software and communication protocols. In case of supply fluctuation of core components, the revised lead time will be communicated and confirmed with customers in advance in written form.
Q3: Do you support OEM customization and customer‑logo marking?
A: OEM / ODM customization is available. We can adjust instrument nameplates, operation interfaces, output protocols and software functions per customer requirements. Customer LOGO and brand nameplates can be printed. Certain customizations may incur costs for program modification and nameplate mould opening. Please provide detailed technical specifications. Our technical department will evaluate and issue solutions and quotations subject to mutually confirmed documents.
Q4: What industry standards does it comply with and what certifications are available?
A: It complies with ISO14644 cleanroom standards and GMP specifications, meeting validation requirements for pharmaceutical, electronics and biological laboratory applications. Our company holds ISO9001 quality management system certification and CE certification, and is a member unit of China Cleanroom Standards Committee. Factory test reports are supplied upon delivery. Third‑party metrological calibration can be arranged upon customer request. Please contact sales for relevant product certification documents.
Q5: What is the after‑sales warranty period?
A: The standard warranty for the complete detecting instrument is 1‑year. Free spare‑part replacement and remote technical support are provided for non‑human‑induced failures within the warranty period. Service sites are available across China, and instrument operation training can be provided. Lifetime technical support, paid repair and metrological maintenance are offered after warranty expiration. Extended‑warranty packages are optional.
