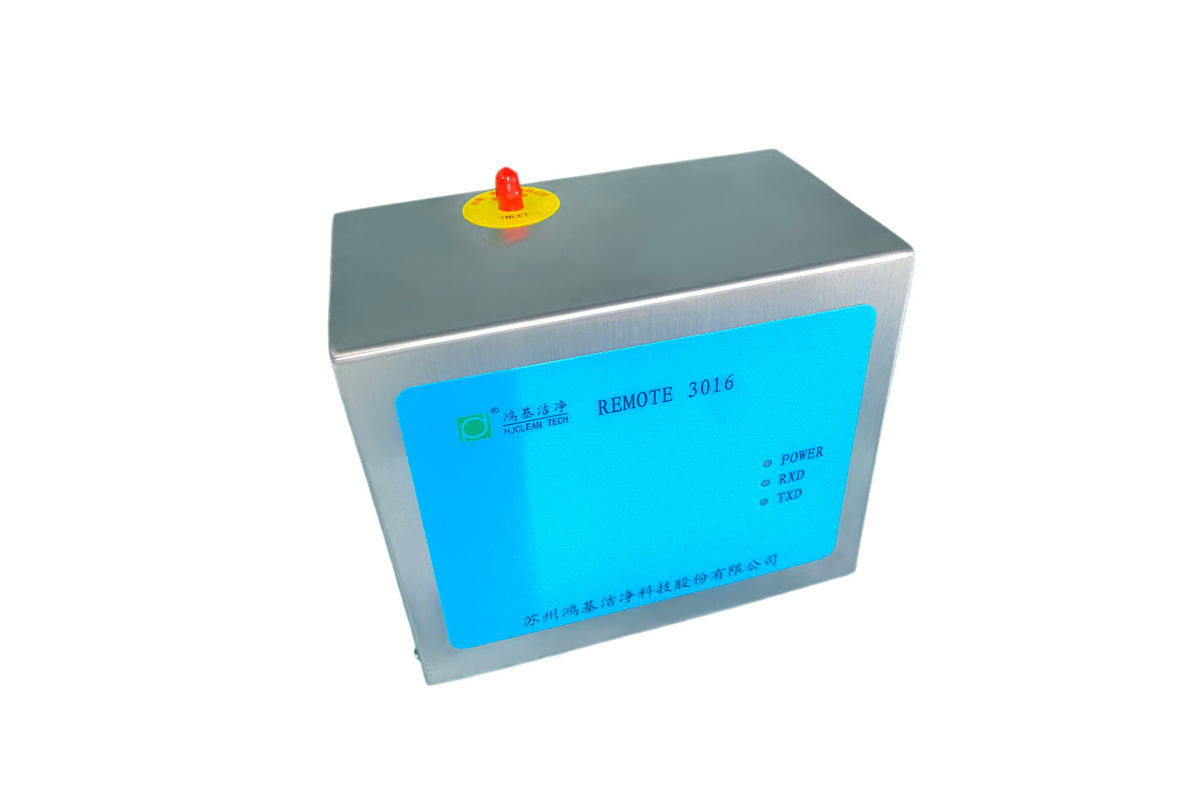

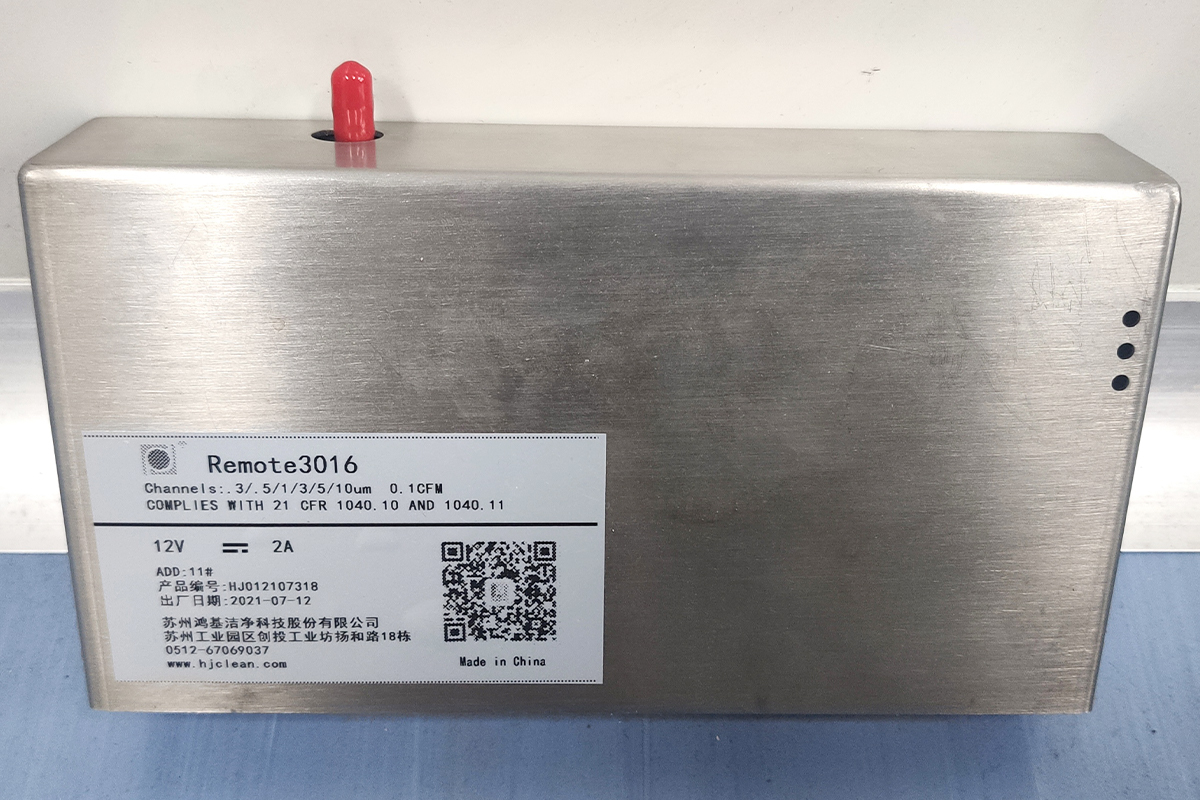

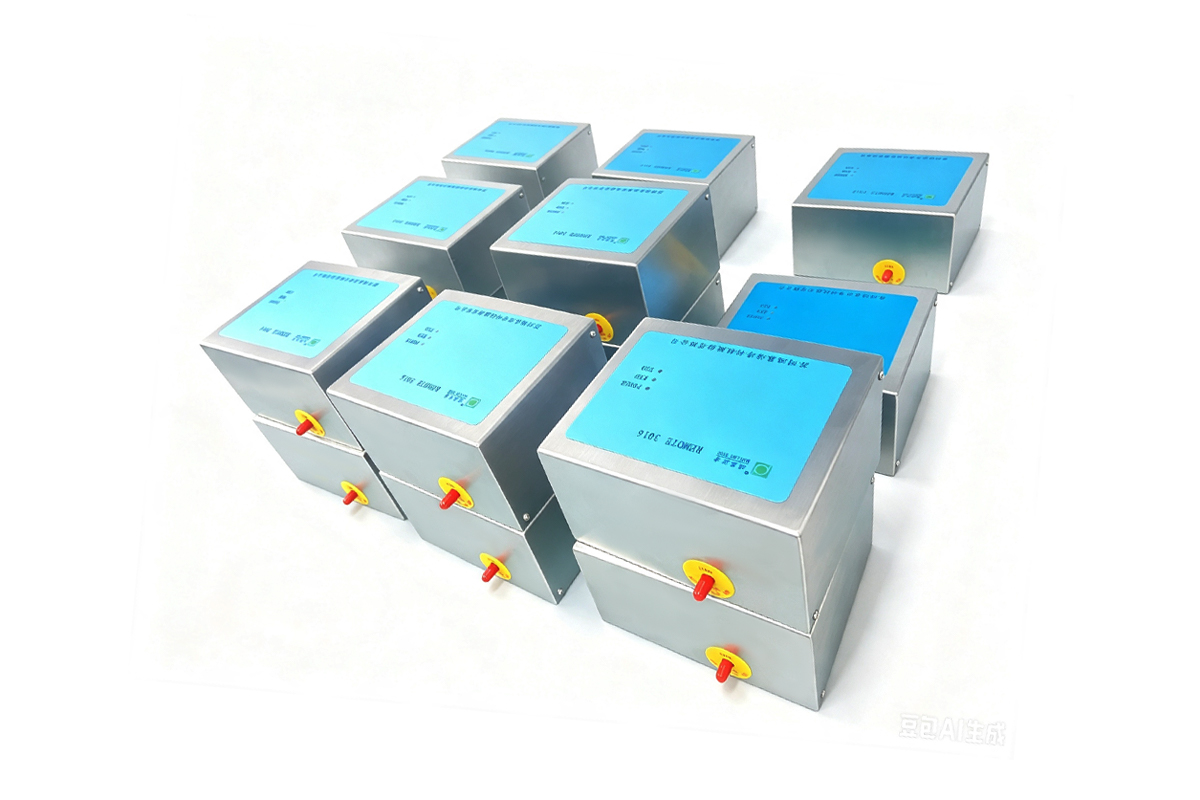

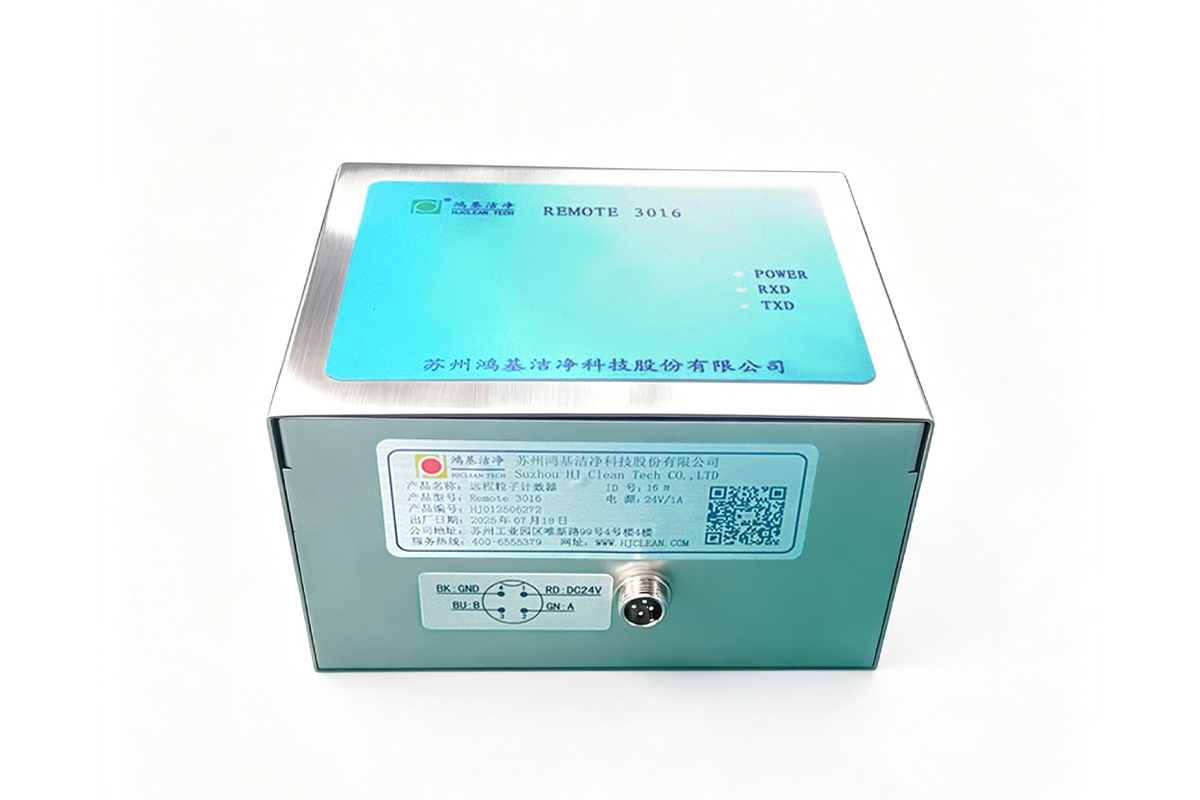

REMOTE3016 particle counter
- The REMOTE3016 particle counter remote sensor (hereinafter referred to as the sensor) is used to measure the size and number of dust particles in a unit volume of air in a clean environment, and the number of corresponding particles is communicated with the upper computer through RS485 communication, and the upper computer can control the sensor To proceed. It can monitor the clean environment with cleanliness levels ranging from one hundred thousand to one hundred.
This sensor uses semiconductor laser light source, small size, light weight, high monitoring accuracy, computer operation, and very convenient to monitor clean environment. It is widely used in electronics, optics, chemistry, food, cosmetics, medicine and health, biological products, aerospace and other sectors.
Product Description
Product Advantages
1. A powerful software system that is compatible with sensors from all over the world, such as lighthouse, METONE, PMS.. free upgrade.
2.The software system has an open data interface and can be easily connected to users' MES/SCADA and other systems
3. The software fully complies with the functions of 21CFR and part11 regulations.
4.Powerful user management function, with over 1000 user management permission settings.
5.With real-time curve, data and historical curve data functions available for selection.
6.Remote monitoring 7/24 real-time monitoring data report.
7.Remote calibration, fast and flexible, without the need for disassembly and return to the factory.
8. HJCLEAN Software System Lifetime Free Upgrade.
Performance Parameters
| Model/Parameters | REMOTE 3016 |
| Particle size | 0.3,0.5,1.0,2.0,5.0,10 μm |
| Sampling flow | 2.83L/min |
| Overall diemension(L*W*H)mm | 214*115 (nozzle25)+air*50 |
| Weight | 1.5kg |
| Power consumption | 20W |
| Power supply | DC12V+10% |
| Sampling pumps | Built-in pump, (brand: Thomas) |
| Detection unit | Pcs/ft³ |
| Concentration error | 30% |
| Repeatablity | ≤10% |
| Measurement accuracy | ±10% |
| Self-cleaning time | ≤10min |
| Output mode | RS485 |
| Light source and life | Semiconductor laser,life greater than 30000h |
| Environment | Temperature: 10-30°C, humidity: 20-75%; Atmospheric pressure: 86kPa-106kPa |
FAQ
Q1: What is the MOQ for the online particle monitoring system?
A: MOQ starts from one monitoring point. Configurations can be made according to the actual point‑quantity requirements of your project. Please contact our sales team for confirmation.
Q2: What is the lead time for the online particle monitoring system?
A: The production lead time ranges from 25 to 45 working days, depending on customization complexity including functions, software and communication protocols. In case of supply fluctuation of core components, the revised lead time will be communicated and confirmed with customers in advance in written form.
Q3: Do you support OEM customization and customer‑logo marking?
A: OEM / ODM customization is available. We can adjust instrument nameplates, operation interfaces, output protocols and software functions per customer requirements. Customer LOGO and brand nameplates can be printed. Certain customizations may incur costs for program modification and nameplate mould opening. Please provide detailed technical specifications. Our technical department will evaluate and issue solutions and quotations subject to mutually confirmed documents.
Q4: What industry standards does it comply with and what certifications are available?
A: It complies with ISO14644 cleanroom standards and GMP specifications, meeting validation requirements for pharmaceutical, electronics and biological laboratory applications. Our company holds ISO9001 quality management system certification and CE certification, and is a member unit of China Cleanroom Standards Committee. Factory test reports are supplied upon delivery. Third‑party metrological calibration can be arranged upon customer request. Please contact sales for relevant product certification documents.
Q5: What is the after‑sales warranty period?
A: The standard warranty for the complete detecting instrument is 1‑year. Free spare‑part replacement and remote technical support are provided for non‑human‑induced failures within the warranty period. Service sites are available across China, and instrument operation training can be provided. Lifetime technical support, paid repair and metrological maintenance are offered after warranty expiration. Extended‑warranty packages are optional.
