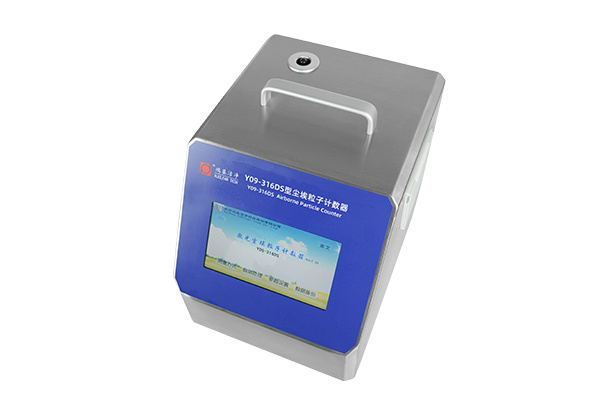

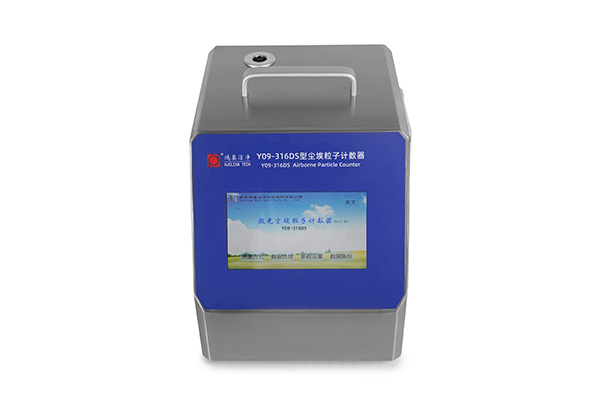

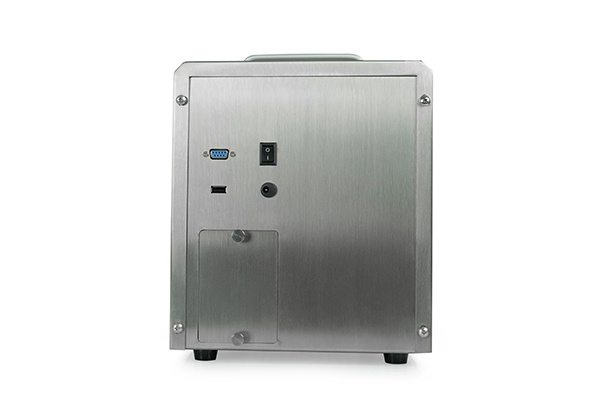

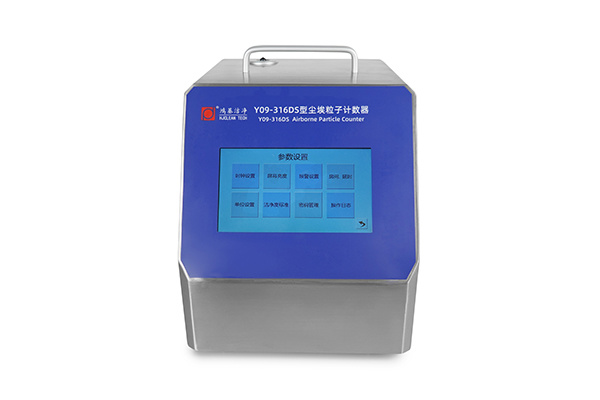

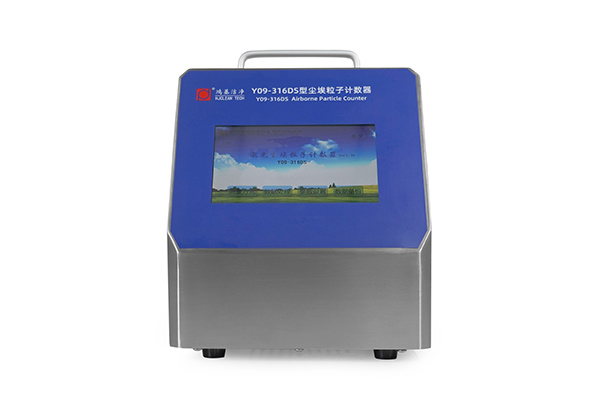

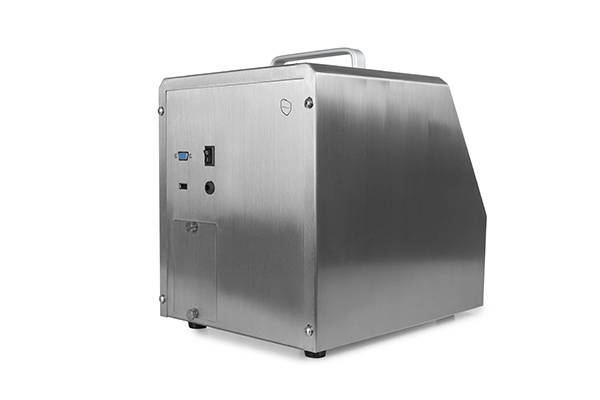

Y09-316DS airborne particle counter
- Y09-316DS airborne particle counter (hereinafter referred to as the instrument) is an instrument used to measure the size and number of large dust particles suspended in the air per unit volume. The instrument adopts semiconductor laser light source, high detection accuracy, simple and clear function operation, can store and print the test results, and the test environment is very convenient. It is widely used in the concentration of large particles suspended in the environment of electronics, optics,..
Product Description
Technical Features
- Touch screen control system
- M3/ft3 unit selection
- 13,000 sampling data storage
- ISO/GMP/209E standard optional
- Three-level password management authority
- USB export and real-time printing
- Count report in accordance with GMP/ISO14644/209EISO21501-4
Performance Parameters
| sampling flow | 28.3L/min |
| Particle size channel | 0.3,0.5,1.0,3.0,5.0,10um |
| Dimensions | 310*240*280mm3 (w*d*h) |
| Weight | 8kg |
| Sampling period | 1s~99 min 99s (adjustable) |
| Sampling frequency | 1~99h 99m 99s |
| Power supply | 14.8V lithium battery |
| Display | 800*480 resolution, 65k colors, touch screen control system |
| Rated power | 30W |
| Self-cleaning time | ≤10min |
| Light source life | life laser diode with 50,000 hours MTTF Long |
| Print mode | Dot matrix printing |
| Counting alarm | 0.3,0.5,1.0,5.0 Alarm data can be set arbitrarily for each channel |
| Data storage | 10000 groups + 3000 groups UCL |
| Continuous working hours | 6H |
| Maximum sampling concentration | 35000/L |
| Working environment | Temperature: 10~ 35 °C; Humidity: 20%~ 75% |
| Optional accessories | SS Auxiliary Vehicle |
| Processing method | Single, Repeated, Continuous, Calculated, GBmodel(UCL) |
