Product Introduction

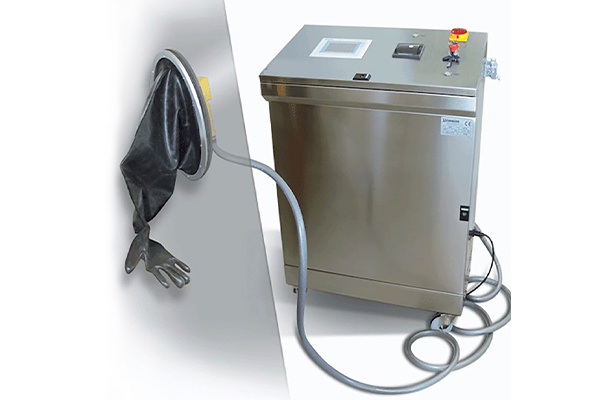

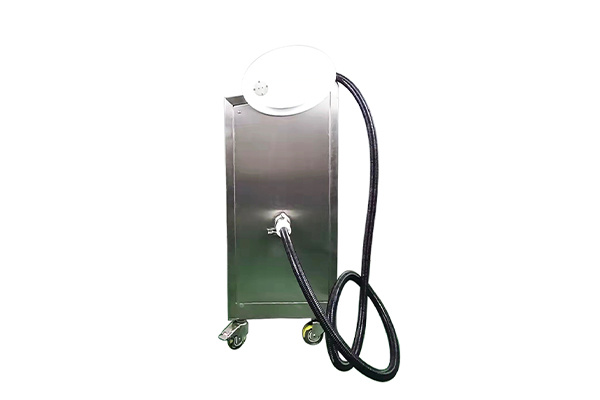

The GT-6 online glove integrity tester is an instrument for detecting the leakage rate of sterile gloves. It is widely used in the leakage detection of rubber gloves and products such as 7- inch, 8 - inch, 10-inch gloves, and half- body suits. It features simple and rapid detection, high accuracy, and visualizable test results.

Working principle

The GT-06 glove integrity tester adopts the differential pressure attenuation detection method to pump up the safety gloves. After the internal pressure reaches the set value, the pressure will start to be maintained. The pressure will drop within the standard range within 30s of the pressure, indicating that the safety gloves are well sealed and tested. The result is: good; on the contrary, if the pressure drop is greater than the standard range within 30s of holding pressure, the surrounding enclosure of the safety glove is leaking, and the test result is: NG.

Technical characteristics

　　· Made of all stainless steel, portable design, convenient for transfer detection

　　· Color touch screen display, stable and reliable work, intuitive and simple interface

　　· Can record and print the test process curve and test results

　　· The detection cycle is 1min, which can quickly detect the integrity of the glove

　　· Optional 7, 8, and 10 inch glove trays in three specifications, which can meet the use of aseptic gloves of various specifications

　　· Optional two-in-one, three-in-one glove tray, can detect a variety of sterile gloves

　　· Man-machine interface dialog box to set three-level password management

　　· Online leak detection, leak detection without removing gloves

Performance parameter
